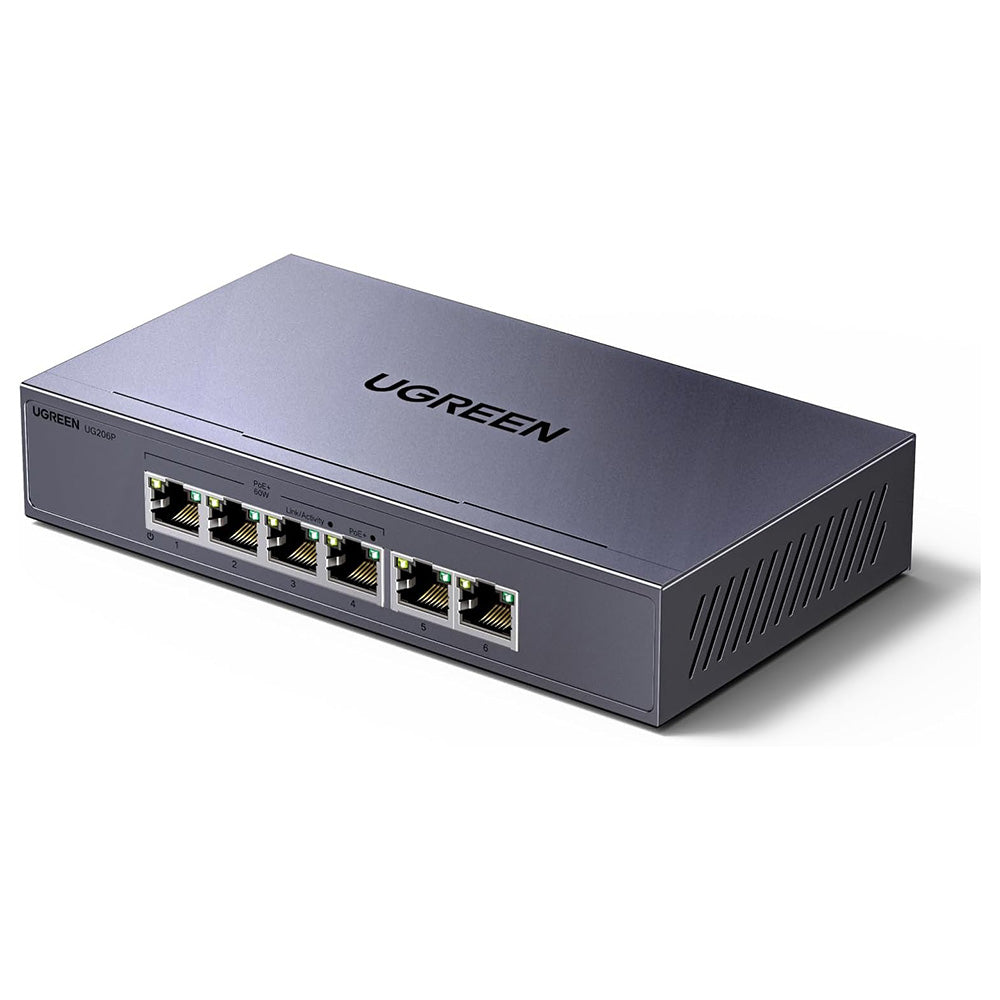

UGREEN CM741 Network Switch (35371EU), Gray

PoE Transmission

The switch extends the connection up to 250m using the same cable for data and power, with speed adjusted for stability over long distances.

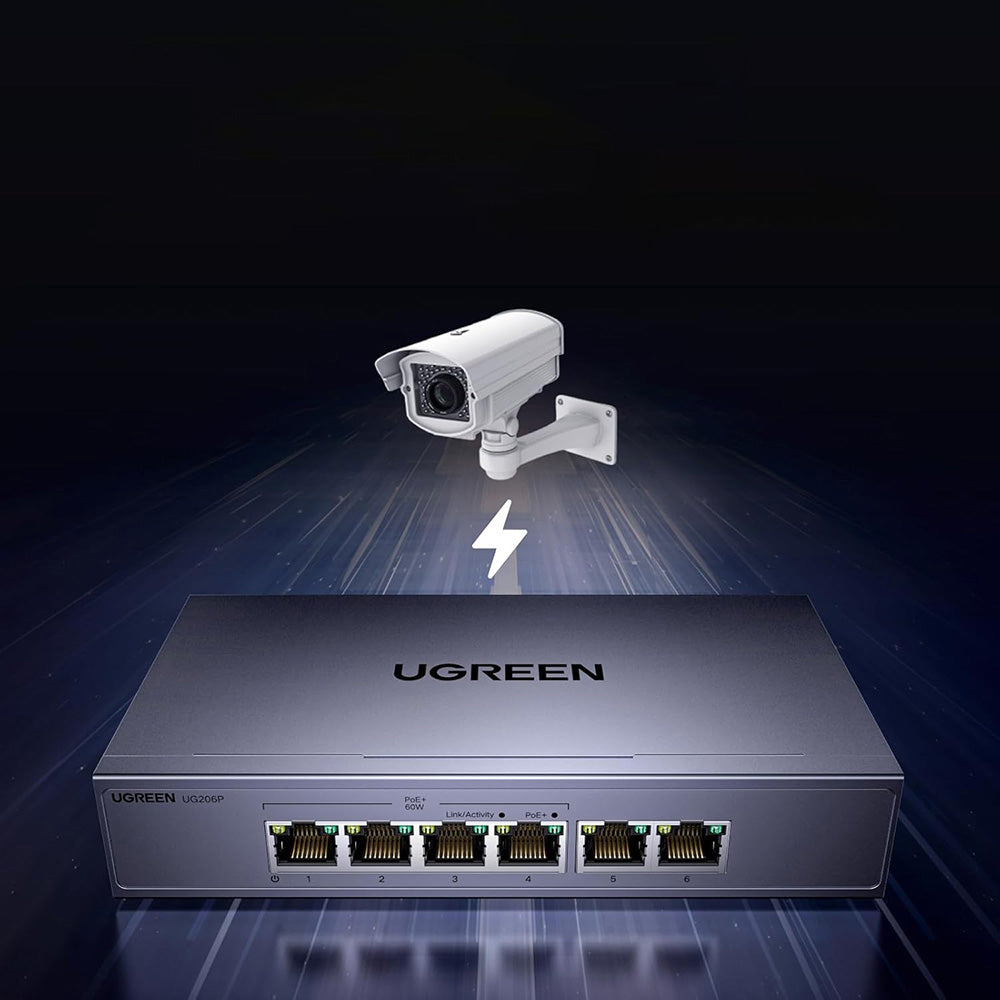

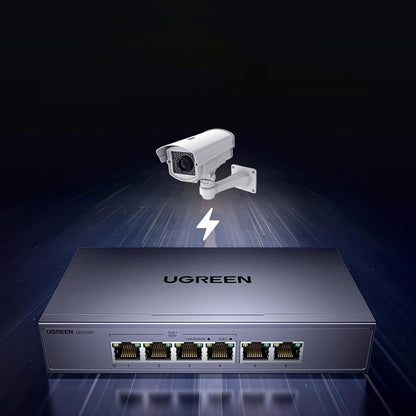

PoE Power Supply

Each PoE port can provide up to 30W, and the switch automatically distributes power to compatible devices.

Specifications:

Material: metal;

Type: Unmanaged;

Ports: 4x Gigabit PoE, 2x Gigabit;

PoE (Power over Ethernet): Yes;

Network standards: IEEE 802.3/u/x/ab/af/at;

Interface: 6x RJ45 10/100/1000Mbps ports;

PoE ports: ports 1-4, up to 30W per port, 60W max for all ports;

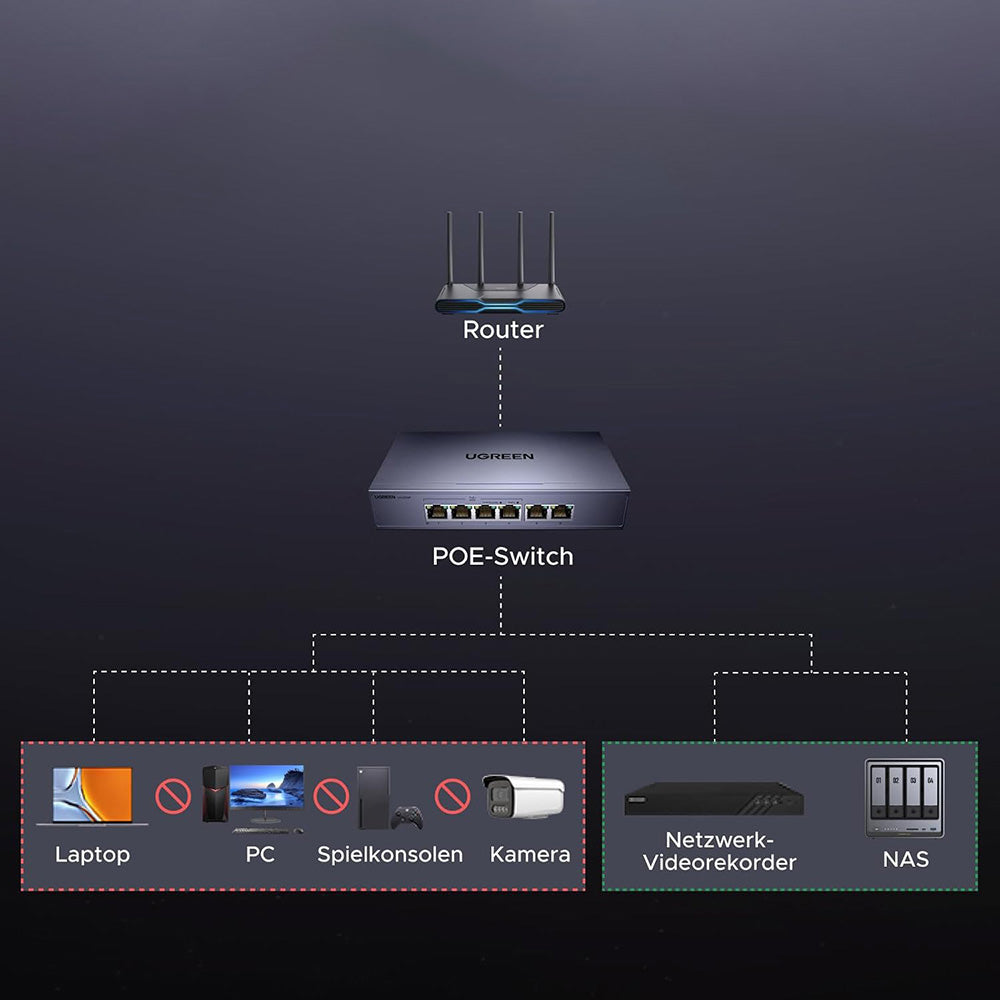

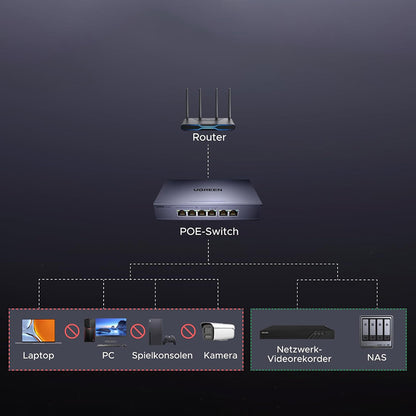

VLAN: ports 1-4 cannot communicate with each other, only with ports 5 and 6;

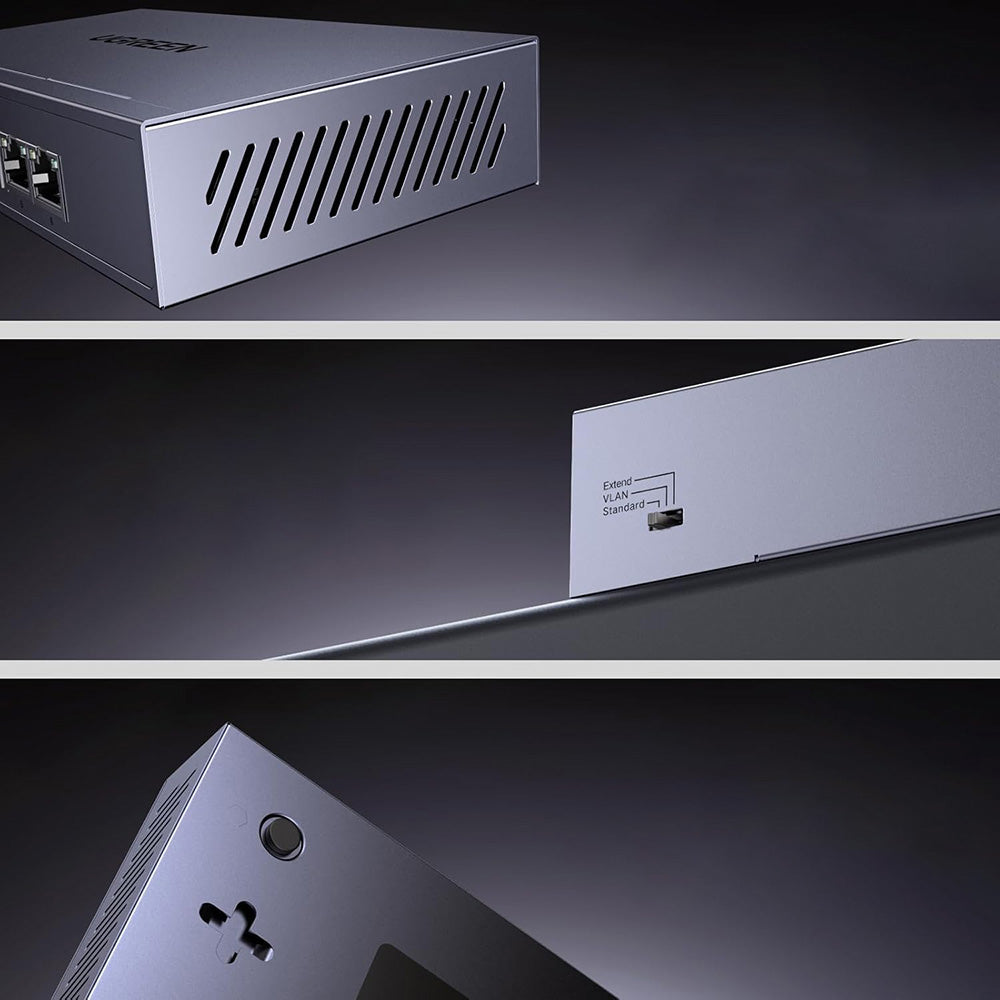

Extend Mode: reduced transfer speed for extended distance, transmission up to 250m (only on PoE ports);

LED indicators: 1x power/PoE Max, 4x Link/Activity, 4x PoE Status;

Transmission medium: 10Base-T Cat 3 or higher (≤100m), 100Base-TX Cat 5 or higher (≤100m), 1000Base-T Cat 5e or higher (≤100m);

Switching capacity: 12Gbps;

Transfer method: Store and Forward;

Forwarding rate: 10Mbps (14880pps/port), 100Mbps (148800pps/port), 1000Mbps (1488000pps/port);

MAC address table: 2K;

Jumbo frame: 9KB

Power supply: AC 100-240V, 50/60Hz;

Output power: 65W Max;

Operating temperature: 0°C - 40°C;

Operating humidity: 10% - 90% RH, non-condensing;

Surge protection: 6kV;

Storage temperature: -40°C - 70°C;

Storage humidity: 5% - 90% RH, non-condensing.
